Modernizing Telco Business for 5G

To help mobile operators make the best use of network resources, Quantum Ran developed the Open RAN Intelligent Controller (RIC), uniquely designed with deep knowledge of the Radio Access Network (RAN) domain, Artificial Intelligence and Machine Learning (AI/ML), and cloud-native, software-defined networking. Designed based on O-RAN standards, the RIC is a new function that controls Radio Resource Management (RRM) decisions for the RAN.  The RIC allows for RRM functions to be migrated from traditional vendor-proprietary hardware, and can be deployed which extensible applications alongside the platform functions to provide tangible business results for the operator.

The Quantum Ran RIC adds strategic value and differentiation to the operator network by providing a framework that automates RAN operational workflows while also optimizing end-to-end network performance.

The Power of Network Intelligence AND Automation

  • Lower TCO by leveraging intelligence to simplify operational workflows and improve radio spectrum efficiency
  • Simplify deployments with proven, end-to-end domain knowledge for use case realization
  • Enable 5G revenue-generating services by providing granular and programmable control over the 5G mobile network
  • Optimize the user experience by applying Intelligence to increase throughput, decrease latency, and extend coverage to individual subscribers

Quantum Ran’s RAN Intelligent Controller (RIC) and Applications

Quantum Ran provides both RIC types (Near-Real Time and Non-Real Time) as defined in O-RAN-defined architecture.

Near-RT RIC

Quantum Ran’s near-RT RIC is the first to control RAN activity at BOTH the cell and individual user level. The containerized application hosts trained AI/ML applications to infer and control O-RAN elements in near-real-time.

The Near-RT RIC is responsible for fine-grained RRM of control-plane and user-plane of the RAN protocol stack at a per-UE level over the E2 interface.

The Near-RT RIC is typically deployed at the edge of the RAN and controls RRM decisions for the RAN functions via xApps at near-real-time granularities, typically ranging from 10 milliseconds to 1 second.

Non-RT RIC

Quantum Ran’s non-RT RIC is a containerized application that uses advanced machine learning algorithms to optimize network performance and train ML models using long-term RAN data for dynamic and adaptive policy and control.

The Non-RT RIC is responsible for setting high-level declarative policies and intents, sending configuration recommendations, and use-case-specific prediction/enrichment information via rApps to the Near-RT RIC over the A1 interface. The Non-RT RIC is hosted in a Service Management and Orchestration Framework (SMO), typically deployed in a centralized cloud, which is responsible for RAN FCAPS operations and orchestration of platform infrastructure resources.

Applications

The RIC opens the door to a rich set of applications operationalized via an “app store,” including rApps to optimize network performance and xApps to infer and control O-RAN functional elements. rApps include offline ML model training based on data collected in the Service Management Orchestration (SMO) and feedback received from the near-real-time RIC. All C-SON functionalities are provided as rApps in the non-RT RIC. xApps allow the near-RT RIC to optimize the radio resource management decisions for control-plane and user-plane functionalities across the layers of the RAN protocol stack on a per-user level. Each xApp offers radio resource management solutions to optimize specific RAN functionalities using data-powered AI and analytics tools and the incorporation of machine learning.

  • Integration of RIC with RAN
  • Development and integration of Applications (use cases)
  • Development and tuning of ML Algorithms to maximize use case results
  • CU/DU integration with RIC
  • Extract and analyze RAN measurements/data
  • Configuration of RAN nodes completing control loop
  • Data collection/extraction from OBF
  • Integration to CI/CD LCM and Configuration to complete control loop

Making it Real – Achieving Business Results with Customer Use Cases

Non-RT RAN Intelligent Controller

In trials of the Quantum Ran non-RT RIC, a Tier 1 mobile network achieved significant improvements in network performance, which results in enhanced user experience.

Comparing one week of data with and without the RIC, the reference KPIs versus the KPIs optimized with the RIC showed:

  • A 20% increase in user downlink throughput for similar call volumes.
  • An increase in total user payload (measured in GB) by 5.3 percent.
  • A CQI distribution increase of 3.12%
  • MCS improvement was up 2.85 percent (DL) and increased 5.9 percent (UL)
  • PRB utilization was reduced 13.6 percent (DL) and lowered by 1.4% (UL)

Near-RT RAN Intelligent Controller

In the O-RAN India Plugfest 2021 hosted by Airtel, Quantum Ran showed a live demonstration of the world’s first O-RAN standards-compliant Near Real-Time RAN Intelligent Controller (Near-RT RIC) with an AI-powered extensible application (xApp). This xApp controls the traffic steering functionality of a 5G Radio Access Network (RAN), a key feature that is responsible for managing the connectivity and mobility of users in the network.  The measured results showed the following compared against SON-based RAN handover algorithms:

  • Improved mobility overhead KPI by reducing the number of handovers by around 50%
  • An increase in the throughput KPI by over 20% for cell-edge UEs

Building the World’s First O-RAN-Compliant, AI-Powered, Closed-Loop Near-RT RIC

In the O-RAN India plugfest 2021 hosted by Airtel Quantum Ran showed a live demonstration of the world’s first O-RAN standards-compliant Near Real-Time RAN Intelligent Controller (Near-RT RIC) with an AI-powered extensible application (xApp) for Traffic Steering. Read more to find out how Quantum Ran’s drastically improved RAN performance by reducing network overhead by more than 50% while increasing cell-edge capacity and user throughput by over 20%.

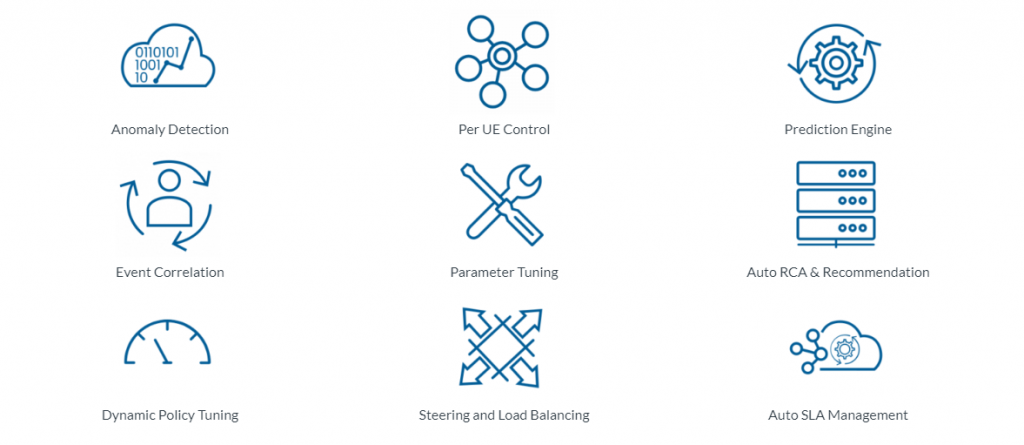

Key Capabilities of Quantum Ran’s RIC
